In recent years, it is preferred to use millimeter (mm) instead of inches for pin-to-pin pitch distance. website has a tool which allows users to check certain models for their authenticity and specifications. To minimize confusion, it is best to describe a connector using: the manufacturer's name, exact connector series, and optionally the pitch such as "JST-XH" or "JST-XH-2.50mm" or "2.50mm JST XH-series" or other variations. Unfortunately, it is very common in blogs and websites to incorrectly name a specific connector only by the name of the manufacturer.
JST CONNECTOR SERIES
Connector confusion on the internetĮnd-users and 3rd-party sellers on eBay often describe connectors by their wrong name thus perpetuating confusion of the exact series of a specific connector. These types of connectors are very popular with drone and Radio Control Aircraft hobbyists.

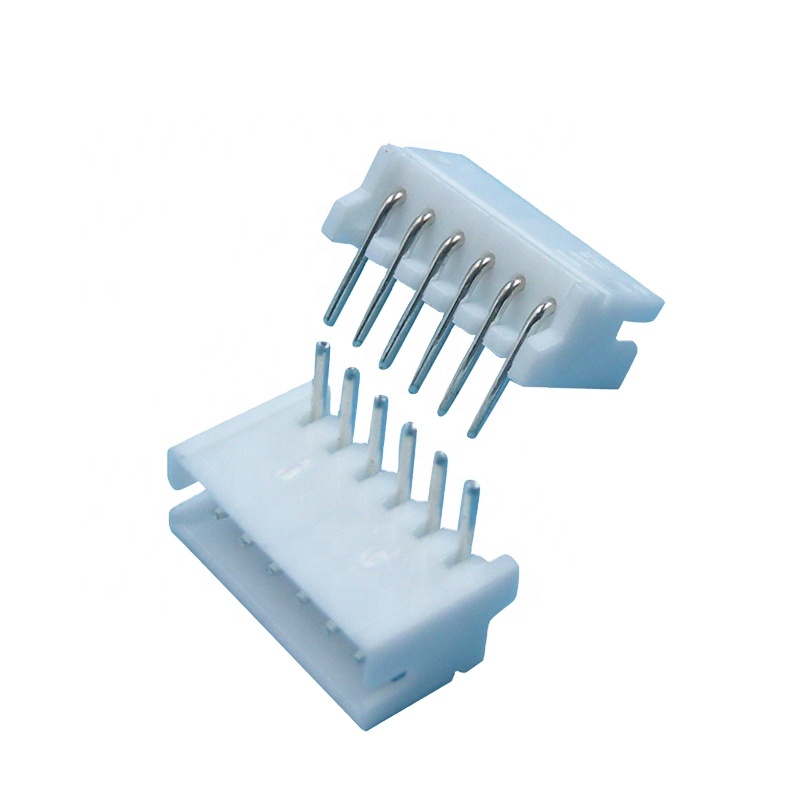

Be aware that many on-line sellers often describe these connectors by incorrect names, perpetuating confusion of the exact type and style of connector. Some JST surface-mount headers are designed to handle higher temperatures of reflow soldering. JST is the name of the manufacturer, which makes many connectors. Used in some RGB LED decorative light strips.Ī majority of JST through-hole headers can't withstand the temperatures required for reflow soldering, because the plastic has a lower melting point since they were designed for wave soldering methods. Commonly found on small models, toys, and small lipo packs. Used in radio control (R/C), also known as BEC or P connector. Some people confuse with Molex PicoBlade. Used by FMA Cellpro R/C battery chargers.Ĭompatible with KR, KRD, CR series. Unshrouded seems to be more popular than shrouded. The PCB (wire-to-board) connectors are available in top (vertical) or side (horizontal) entry, and through-hole or surface-mount. JST manufactures a large number of series (families) of connectors.
